Kairuhs FPV Super Mini Kit – Ultralight Single-Screen Telemetry
The Kairuhs FPV Super Mini Kit is an ultralight FPV cockpit display designed specifically for weight-sensitive and space-constrained models. This compact FPV cockpit display system delivers the core Kairuhs telemetry experience in an ultra-compact package, perfect for pilots and drivers who need essential data without the weight and complexity of a full quad-screen system.
The Super Mini Kit board is over 75% lighter and significantly smaller than the standard v2.2 board, with dimensions of just 24.5mm × 21mm × 5.5mm (estimated). This ultralight FPV cockpit display makes it ideal for micro builds, flying wings like the Flying Fish, or compact models like the Zohd Nano Talon and Hewing Hunter H1.
⚠️ Product appearance may differ from photos shown.
Small batch production
What Makes This FPV Cockpit Display Different
Single Screen Port: One display output — choose your essential role (PFD, MFD, HUD, Radar, or any ground dashboard). Roles can be switched with your transmitter while flying, allowing you to easily see ALL roles even with just one screen.
Significantly Faster Performance: With only one screen to drive, this FPV cockpit display is dramatically faster than quad-screen systems. CPU load is reduced, framerate is increased, and the overall system is more responsive.
MAVLink & MSP Support: Both protocols supported at 115200 baud. MAVLink is most stable on INAV 7.x; MSP works on INAV 7.x and newer.
FC Port Only: Streamlined connectivity with flight controller telemetry input.
No LoRa/GPS/PWM/Sensor Ports: This FPV cockpit display is a focused, lightweight solution for pilots who need telemetry without the full modular ecosystem.
Same Firmware, Same Quality: Pre-flashed with firmware v2.144 — same display roles, same configuration interface, same reliability as the full-size board.
Why Choose This FPV Cockpit Display?
Weight Savings: Over 75% lighter than standard telemetry boards — this FPV cockpit display is perfect for models where every gram counts.
Space Savings: Dramatically smaller footprint (24.5mm × 21mm) means easier integration into tight fuselages, nose cones, or wing bays.
Performance Boost: Faster framerate and reduced CPU load compared to multi-screen setups.
Simplicity: One screen, one cable, one job — get your essential telemetry data without extra complexity. Switch roles in-flight via transmitter.
FPV Cockpit Display – Perfect For
- Micro flying wings (Flying Fish, Nano Talon, Hewing Hunter H1)
- Ultra-compact sport planes and slope soarers
- Weight-critical builds (sub-250g, racing, long-range efficiency)
- Pilots who need one critical display without the full quad-screen setup
- Builds with limited internal space
- RC cars, crawlers, rally vehicles, and drift cars
- Motorsport dashboards and track telemetry
Available Display Roles
AIR Roles: PFD, MFD, HUD, Air Radar, Gauges Pages 1-3
GROUND Roles: Track Dash 1/2, Street Dash, Ground Gauges, Radio, License Plate, Inclinometer, Ground Radar, Double DIN GPS
All roles can be switched in-flight or mid-drive using your transmitter.
What’s Included in Your FPV Cockpit Display Kit
The Super Mini Kit includes everything you need to get flying:
Includes:

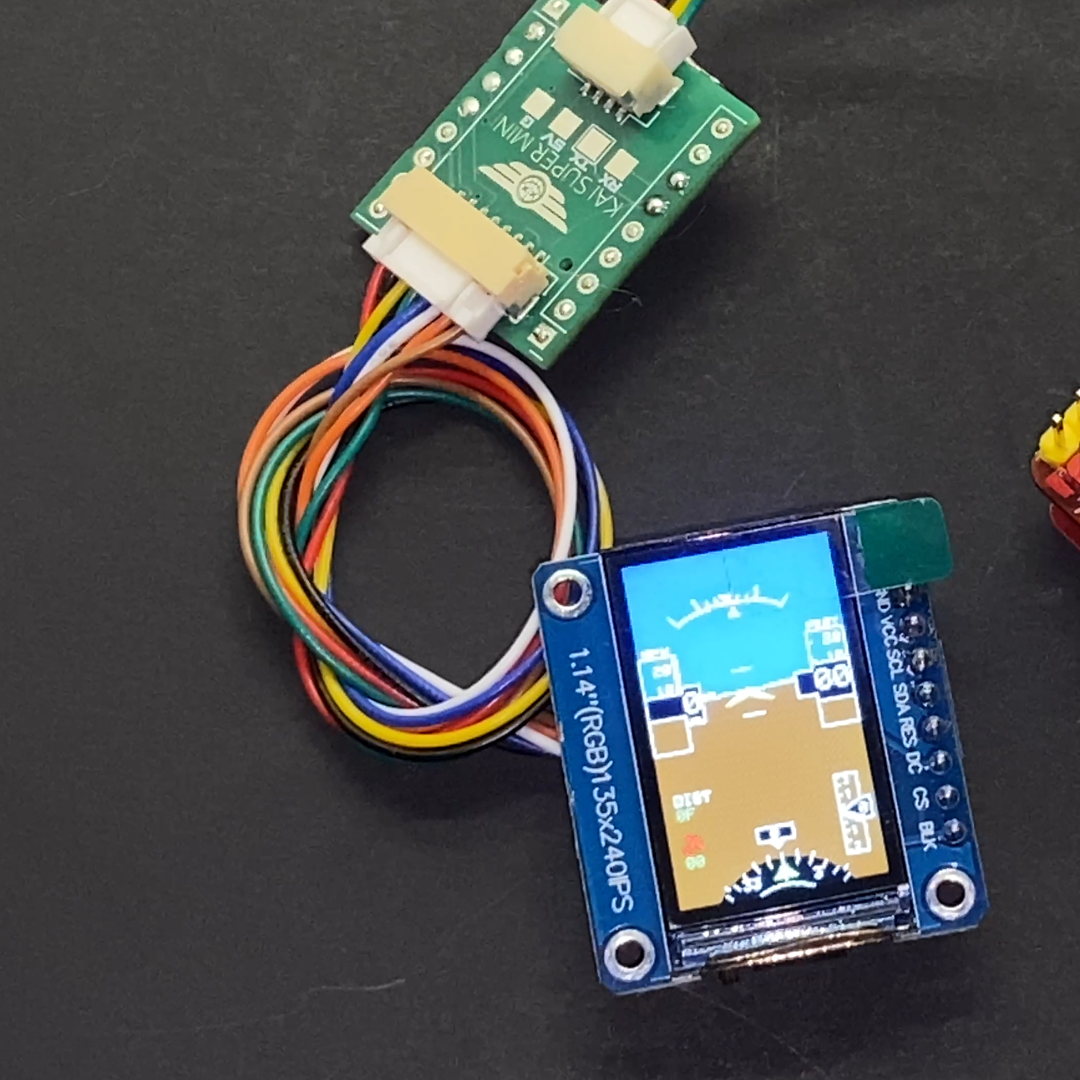

- Kairuhs FPV Super Mini Control Board (pre-flashed with v2.144)
- 1× Display (1.14″ or 1.44″)
- Display cable
- FC telemetry cable
⚠️ Read the manual before operation.
FPV Cockpit Display Compatibility & Power
Flight Controllers: MAVLink or MSP at 115200 baud (INAV 7.x recommended)
Power: 5V via FC telemetry cable or solder pads (only use one at a time)
Vehicles: RC planes, wings, cars, trucks, crawlers, rally vehicles, drift cars
Setup & Configuration

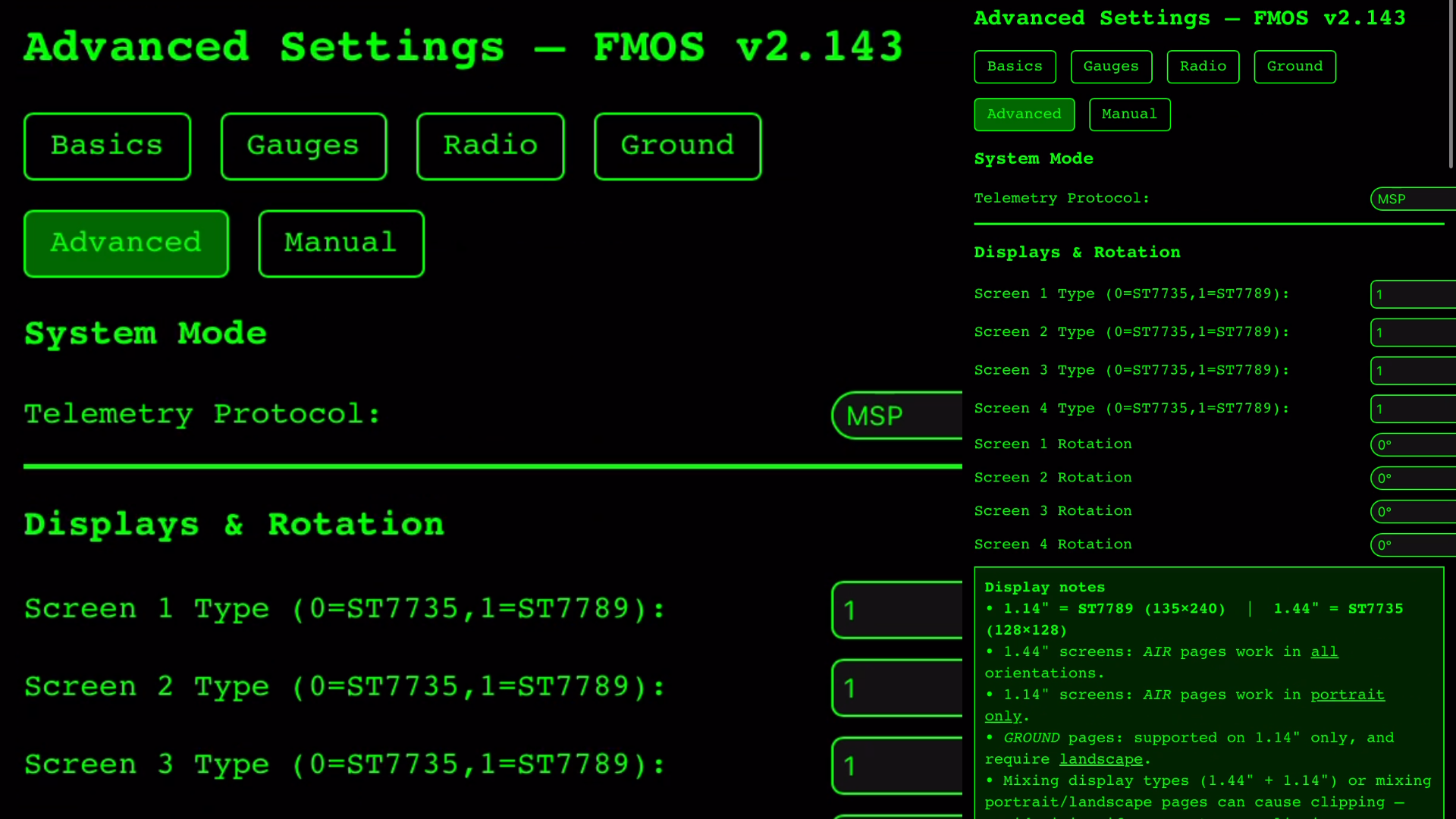

AP Mode (Wireless Config):
- Hold BOOT button at power-up
- Connect to KAIRUHS_Config (password: kairuhs123)
- Configure at http://192.168.4.1
Full digital manual included in AP mode.
Expected shipping to start in March.
Each FPV cockpit display is bench-tested before shipment to ensure plug-and-play reliability.
Assembly & Testing: Allow 5-10 business days for assembly and shipping info. Each unit is built and tested in the USA.
All sales are final.
Need More Features?
Check out the Kairuhs FPV Kit V2.2 with quad-screen support, Wi-Fi/LoRa radar, GPS input, PWM input, and sensor ports for the complete modular system.
Demo, Tutorials & Support
YouTube: https://www.youtube.com/@Kairuhshq
Instagram: https://www.instagram.com/kairuhshq
Facebook Group: https://www.facebook.com/groups/1231576258453632
Thingiverse: https://www.thingiverse.com/KairuhsHQ/designs
Support: kairuhsconsole@gmail.com
Display Dimensions & Weight
1.44″ Display: 9.8g | 29.4 × 45.9 × 12.2 mm
1.14″ Display: 5.4g | 28 × 31.5 × 9.8 mm
