Description

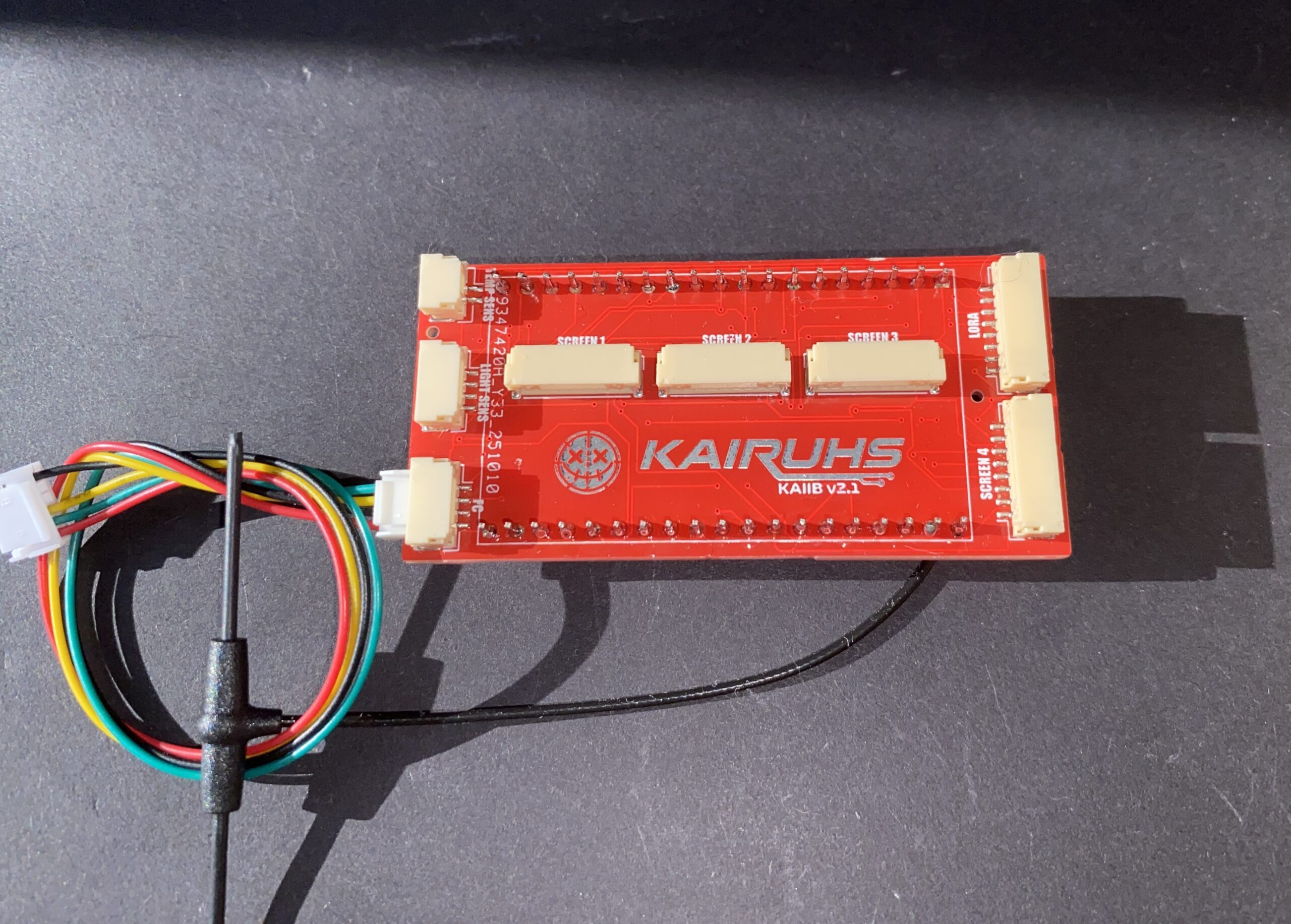

Kairuhs FPV Display Control Board v2.1
The Kairuhs FPV Display Control Board v2.1 marks the next step in the Kairuhs telemetry platform, designed for both aircraft and ground vehicles. It combines advanced connectivity with flexible display control, giving pilots and builders a truly modular setup.
Supporting up to four independent displays, this board lets you build a complete FPV cockpit layout with PFD, MFD, Radar, and HUD roles. Each display can be rotated, reassigned, and tuned for adaptive brightness through the new sensor ports. The result is a highly customizable system that adapts to any vehicle or configuration.
Compared to earlier versions, the v2.1 board retains the reliable LoRa module port from v2.0 for long-range telemetry. It also introduces a dedicated external 2.4 GHz antenna for the FastLink radar system, extending Wi-Fi radar range and improving pilot-to-pilot awareness during flight, racing, or formation missions.
To expand functionality even further, sensor ports now support modular add-ons such as ambient-light and temperature modules. The temperature sensor can monitor ambient air, ESCs, motors, VTX units, or nitro and gas engine bays, providing real-time thermal and gear data for your setup. Meanwhile, rear solder pads give direct access to 5 V, GND, TX, and RX pins, making flight-controller wiring clean and simple.
In addition to aerial roles, the v2.1 board performs flawlessly on the ground. It’s perfect for track dashboards, street dashboards, gauge panels, digital license plates, or inclinometer displays. This versatility makes it the most adaptable Kairuhs platform ever produced.
Every board ships pre-flashed with firmware v2.13x and is bench-tested before delivery to ensure plug-and-play reliability.
📦 Includes:
• Kairuhs FPV Control Board (v2.1)
• 2.4 GHz Antenna
• MAVLink / Power Cable
Displays not included — sold separately.
Please allow 1–3 weeks for testing and shipping.
